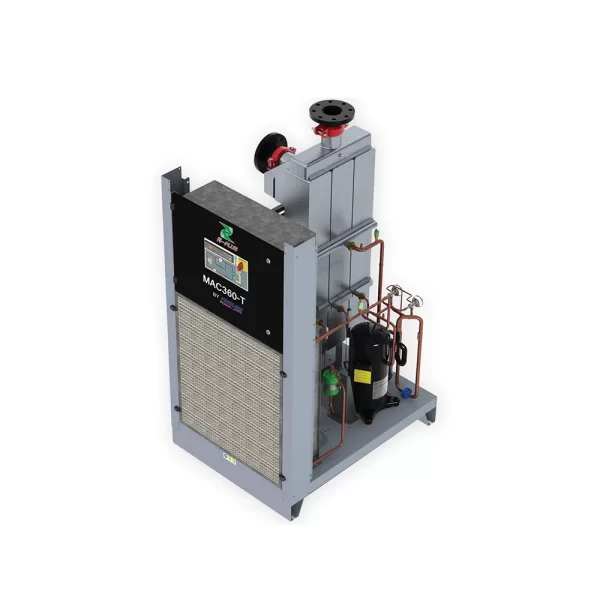

MAC-T Series (M-Plus Air Dryer)

Technical

• Folw Rate : 0.85 – 1.2 m3/min. (Max.Pressure 16 bar)
• Folw Rate : 1.80 – 300 m3/min. (Max.Pressure 14 bar)
• Pressure dew point 3℃
• low pressure drop even with load variances
• low power consumption thanks to the ALU-DRY heat exchanger, high efficiency compressors, innovative hot gas by-pass valve and zero loss drain condensate system
• constant pressure Dew Point with differing load conditions
• functionally even at maximum working conditions (air inlet 70°C and ambient 50°C) The components of MAC range, from refrigerant to materials of construction, have been selected with maximum respect for the environment and their ability to be recycled.
